About Us
Well-known at European level and beyond, our cast iron castings serve an important part of the industrial sectors: machine tool construction, automotive industry, energy industry, transport industry, extractive industry, light industry, metallurgical industry, etc.
Saturn's know-how, the high degree of qualification of the staff and the productive capacities, allow castings’ production in a wide range of dimensions and complex geometries, maintaining a high level of quality.
The company has 3 production divisions:

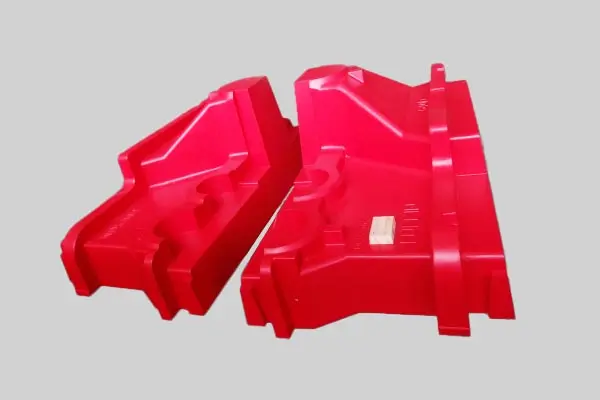

- Pattern shop - we produce "in house" all the necessary patterns;
- Cast iron foundry - annual capacity of 17.500 tons;
- Machining - we carry out the rough-machining for our castings.
Our Services
Saturn provides its customers complete and integrated services of:

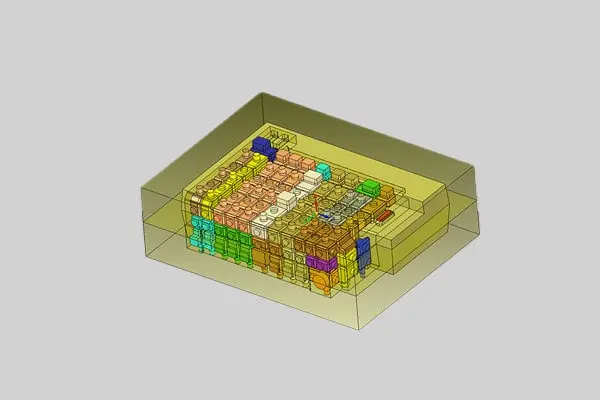

- Technological design;
- Advanced simulation;
- Pattern execution;
- Cast iron casting;
- Heat treatments for stress relieving and normalization;
- Rough-machining;
- Primary painting.
We execute high complexity castings with dimensional range 500 - 16.000 [mm] and weights between: 80 - 40.000 [kg], with wall thickness bigger than 10[mm];
We elaborate the following cast iron grades:
Lamellar Graphite Cast Iron
EN | DIN | ASTM |
---|---|---|
EN-GJL-200 | GG 20 | Class 30 |
EN-GJL-250 | GG 25 | Class 30 |
EN-GJL-300 | GG 30 | Class 40 |
EN | DIN | ASTM |
---|---|---|
EN-GJS-400-18 | GGG 40.3 | 60-40-18 |
EN-GJS-400-18-LT | - | - |
EN-GJS-400-15 | GGG 40 | 60-40-18 |
EN-GJS-500-7 | GGG 50 | 70-50-05 |
EN-GJS-600-3 | GGG 60 | 80-60-03 |
EN-GJS-700-2 | GGG 70 | 100-70-03 |
Products
Parts for machine tools
- Beds
- Fixed and mobile tables
- Rotary tables for vertical lathes
- Fixed and mobile cross bars
- Columns and vertical beam
- Transmission wheels
- Monobloc portal modules composed of table, columns and fixed crossbar
Automotive Industry castings
- Molds for carcasses
- Components for wheel cutting machines, etc.
Parts for oil extraction plants
Measuring and control tables
Castings for elevators
Counterweights

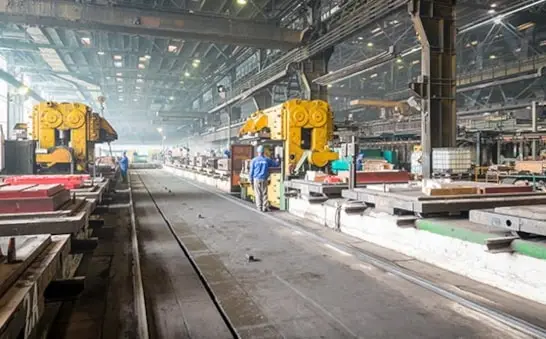

Technology and machinery
Our Customers
Biglia S.p.A.
Bonanomi S.r.l.
Comec S.r.l.
Automobile DACIA S.A.
Fermat Stroje Lipník s.r.o.
Fives Landis Ltd.
G.D S.p.A
Gerardi S.p.A.
Ghiringhelli S.p.A.
Giuseppe Giana S.p.A.
Grinding Technology Srl
Hypatia Gnc Acc. S.A.
IMT Intermato Srl
Innse-Berardi S.p.A.
Jobs S.p.A.
Lazzati S.p.A.
Mandelli S.r.l.
Meccanica Nova S.p.A.
Nicolás Correa S.A.
Pama S.p.A.
Parpas S.p.A.
Rema Control S.r.l.
Robbi Group S.r.l.
Rosa Ermando S.p.A
Sacma Limbiate S.p.A.
Officine S. Giacomo S.r.l.
Soilmec S.p.A
Spinner Takim Tezgahlari
Spinner Wzm GmbH
Tenova S.p.A.
Trevisan S.p.A.
